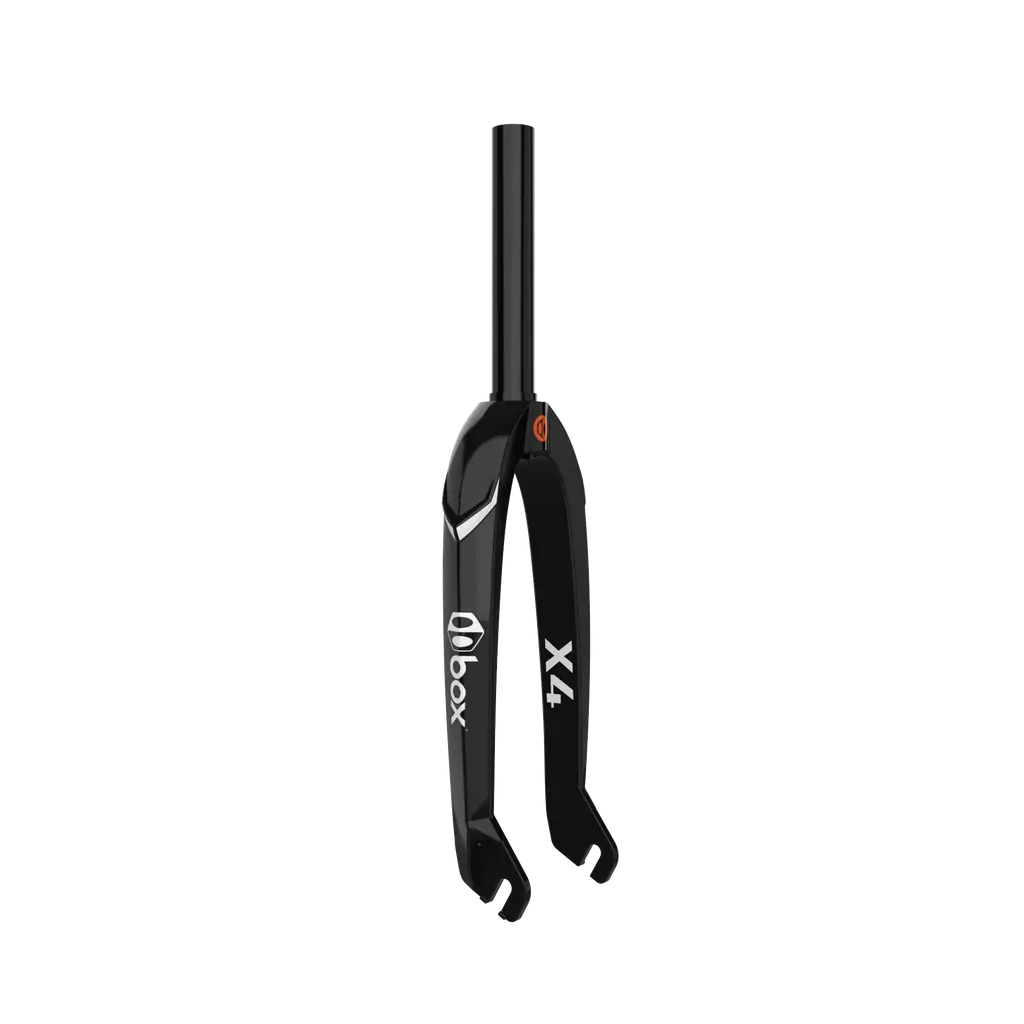

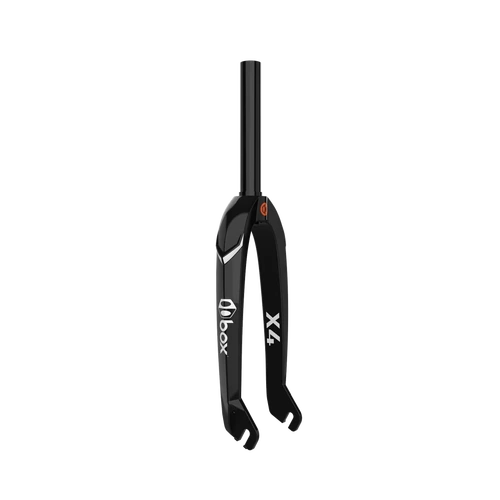

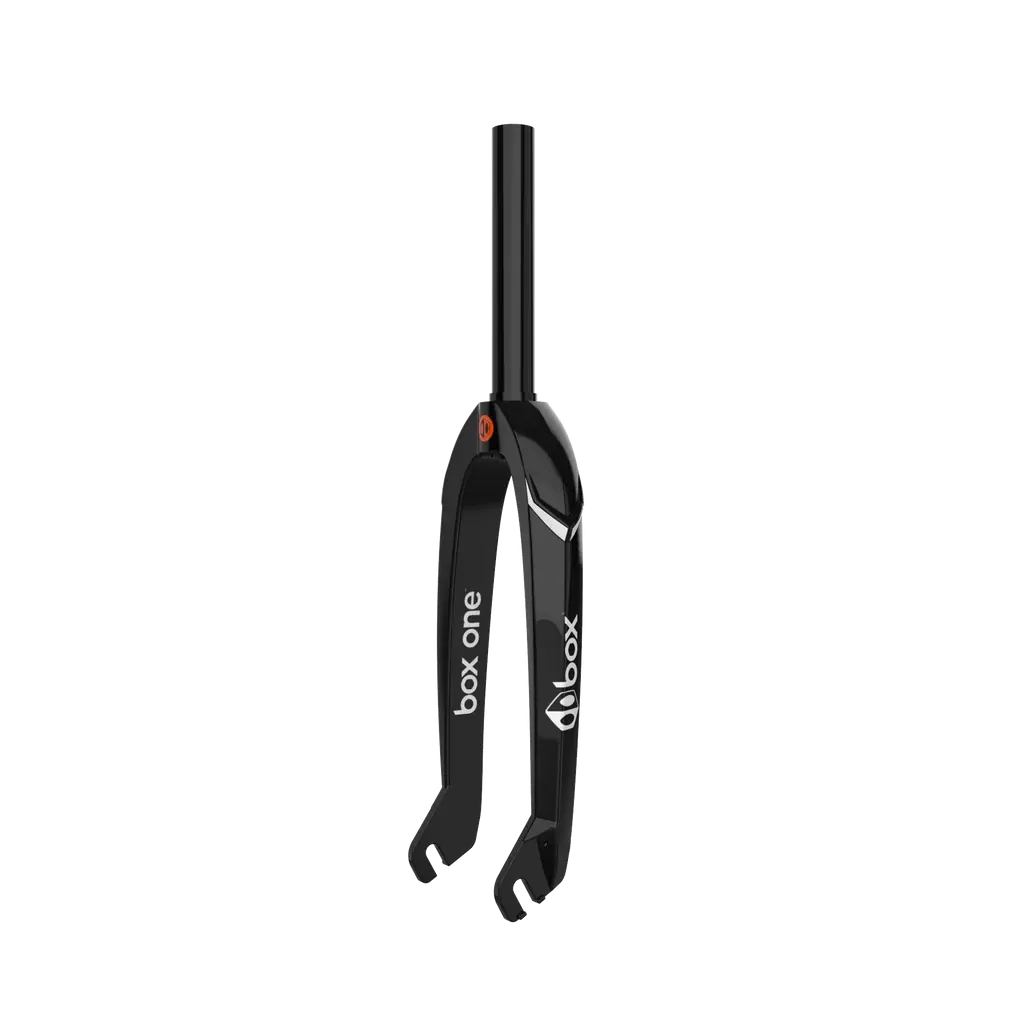

Box One X4 Pro Carbon 1 1/8” Alloy Steerer Fork

Description

 All Box One forks are engineered and crafted using our Oversized Technology.

These forks are the single most important component in the quest for bike control.

We’ve moved carbon from areas of low stress to areas that handle high load.

Those muscular shoulders aren’t just for looks as they are integral to achieving superior steering stiffness.

When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.

Key differences:

This particular model fork is tailored for larger-sized racers and therefore includes a lightweight 1-1/8 inch 7000 series aluminum steerer tube and 10mm cold-forged dropouts.

Weight Limit: 115kg

Material:

• Legs: High Modulus Unidirectional Carbon Fiber

• Steerer: 7075-T6 Aluminum • Butterfly & Dropouts: 6061-T6 Aluminum Process:

• Legs: Vacuum Mold • Steerer: Extruded & Butted

• Butterfly & Dropouts: Cold-Forged Hardware: Stem Lock Finish: Gloss Black with White Decals Compatibility/Size:

• Height: 20” / 24”

• Steerer: 1-1/8" Straight

• Offset: 32mm

• Dropouts: 10mm Height

• Axle to Crown: 20” 303mm / 24” 354mm

Weight

• 20": 565g / 19.9oz

• 24": 575g / 20.3oz

Please note: weight may vary by +/- 5% due to carbon manufacturing processes.
