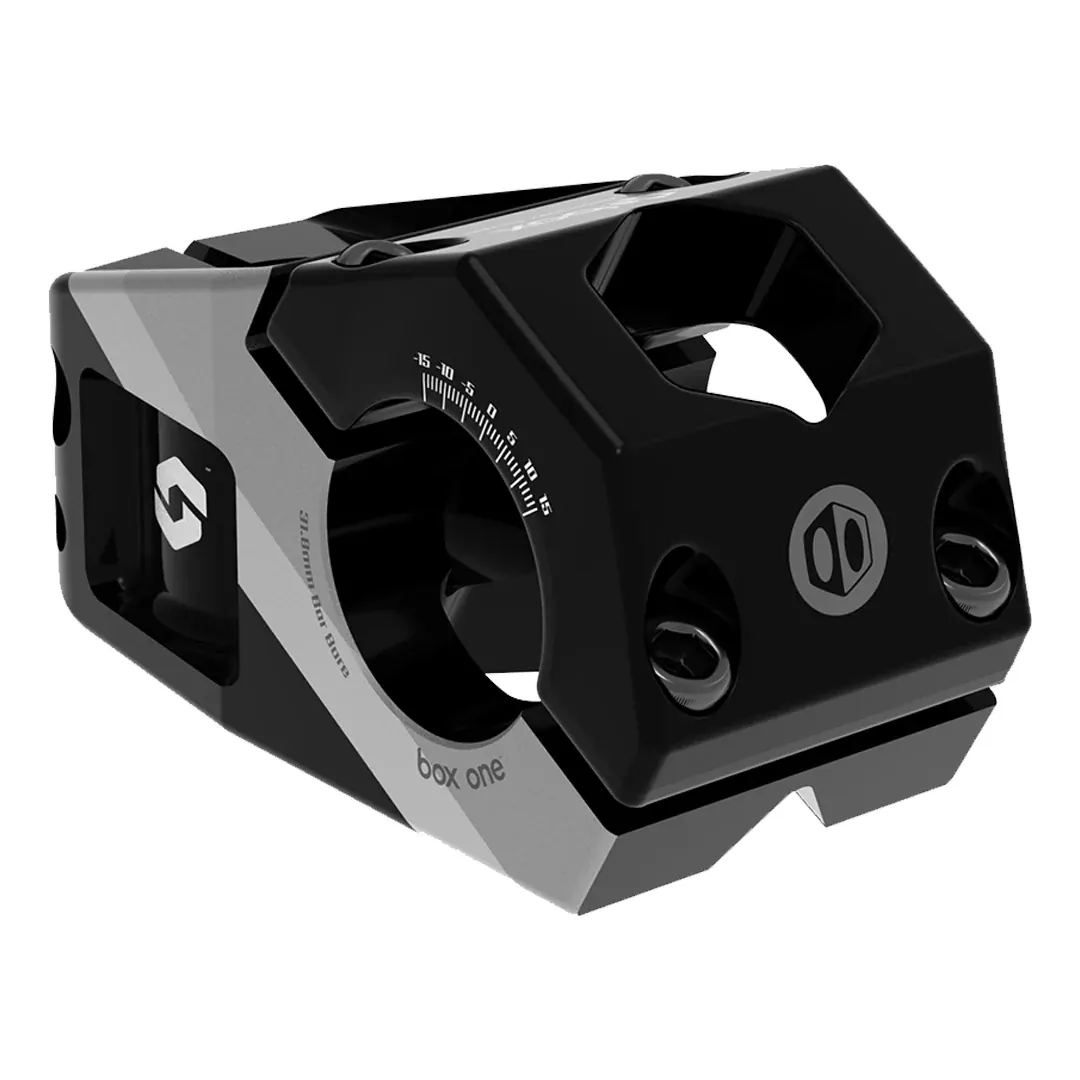

Box One Oversized 31.8 x 1-1/8" Delta Stem

Description

All Box stems are engineered and crafted using our Oversized Technology. As we follow the load paths down the handlebars we have focused our attention on the stem-to-bar interface. Since the Oversized handlebars have an increased wall thickness and tube diameter in this sector we have reciprocated with an augmented stem interface with greater surface area. We’ve done this by moving material from low stress areas. This has greatly minimized twist and contributed to responsiveness. As the stem is mated with the handlebars we have contributed to increased pedaling stiffness by providing a backstop to the “lifting” phenomenon. There is no point pushing hard on your pedals if you can’t pull up on your handlebars and deliver that power. Power can easily be lost to handlebar-to-stem deflection and the consequences can be poor power delivery and steering control. When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.

Key differences: This particular model stem not only shifts material from low stress zones to the Oversized interface, but also provides rigidity through the side skirt design. We used a reverse development process for the delta stem. The structure was created from the outside-in vs. the traditional inside-out method. These stems are engineered for the larger-sized racers.

Specifications

Material: 6061-T6 Aluminum

Process: Forged & CNC

Hardware: Chromoly Clamping Bolts

Finish: Anodized w/Laser-Etched Graphics

Size: · Length: 48mm, 53mm

· Clamp Diameter: 31.8mm

· Stack Height: 32mm

· Rise: 0˚

· Steerer Tube: 1-⅛”

. Suits 31.8mm Oversize handlebars

Weight: · 48mm: 290 g / 10.2 oz · 53mm: 299 g / 10.5 oz
